Cutting coils into plates of different lengths after checking their flatness.

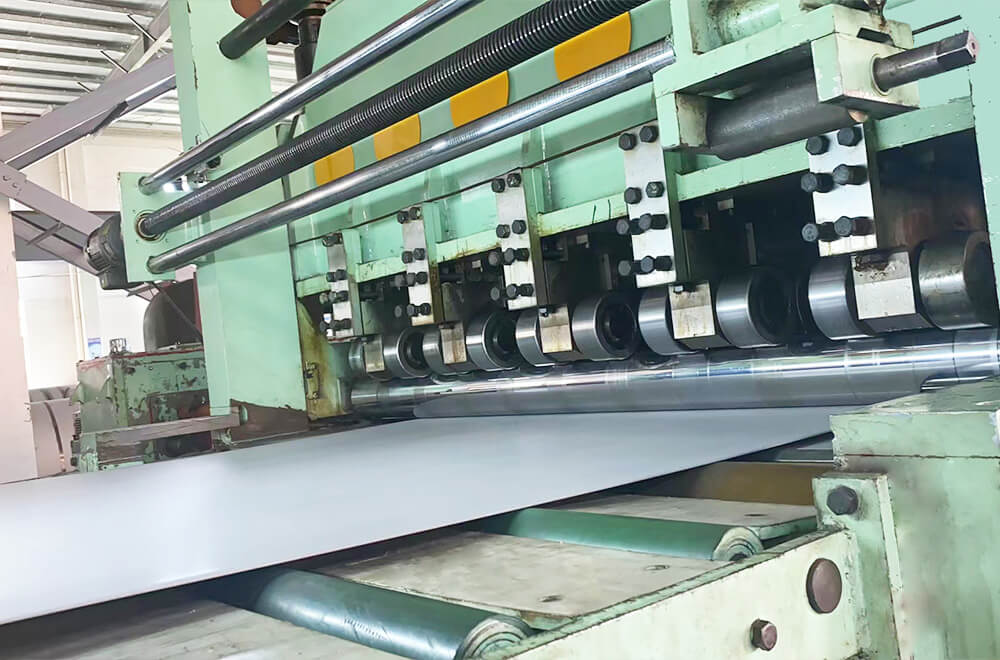

Shear production line is mainly composed of loading trolley, uncoiler, levelling machine, feeding mechanism, shear, conveying device, stacking device, etc. The metal coil is uncoiled, levelled, sized and sheared into a flat sheet of the required length, and with the stacking system, the stainless steel sheet with excellent flatness is produced.
Advantages
-High shearing accuracy
-Double
-station stacking, efficient and fast
Technical Specs
Shearing equipment | ||
Min | Max | |
Thickness | 0.4mm | 18mm |
Width | 60mm | 2000mm |
Length | 500mm | 15000mm |
Tolerance of Length | +1mm | |
